TPB工程塑料規格表 1

TPB工程塑料規格表




左右滑動看表格

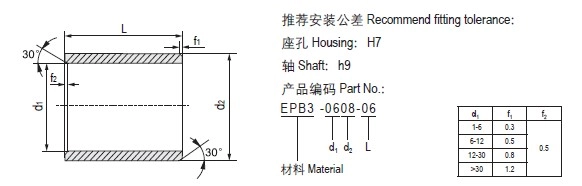

產品編碼
Part No.		 d1
[mm]		 d1-公差 After fitting
[mm]		 d2
[mm]		 L(h13)
[mm]		   產品編碼
Part No.		 d1
[mm]		 d1-公差 After fitting
[mm]		 d2
[mm]		 L(h13)
[mm]
TPB-0203-03 2 +0.014/+0.054 3.5 3 TPB-1618-12 16 +0.032/+0.102 18 12
TPB-0304-03 3 +0.014/+0.054 4.5 3 TPB-1618-15 16 +0.032/+0.102 18 15
TPB-0304-036 3 +0.014/+0.054 4.5 3.6 TPB-1618-20 16 +0.032/+0.102 18 20
TPB-0304-05 3 +0.014/+0.054 4.5 5 TPB-1618-25 16 +0.032/+0.102 18 25
TPB-0304-055 3 +0.014/+0.054 4.5 5.5 TPB-1619-5.5S 16 +0.015/+0.055 19 5.5
TPB-0304-06 3 +0.014/+0.054 4.5 6 TPB-1620-16 16 +0.032/+0.102 20 16
TPB-0405-04 4 +0.020/+0.068 5.5 4 TPB-1820-15 18 +0.032/+0.102 20 15
TPB-0405-05 4 +0.020/+0.068 5.5 5 TPB-1820-20 18 +0.032/+0.102 20 20
TPB-0405-06 4 +0.020/+0.068 5.5 6 TPB-1820-25 18 +0.032/+0.102 20 25
TPB-0405-08 4 +0.020/+0.068 5.5 8 TPB-2022-12 20 +0.040/+0.124 22 12
TPB-0405-10 4 +0.020/+0.068 5.5 10 TPB-2022-15 20 +0.040/+0.124 22 15
TPB-0506-05 5 +0.010/+0.040 6 5 TPB-2022-28 20 +0.040/+0.124 22 28
TPB-0506-07 5 +0.010/+0.040 6 7 TPB-2023-10 20 +0.040/+0.124 23 10
TPB-0507-05 5 +0.020/+0.068 7 5 TPB-2023-15 20 +0.040/+0.124 23 15
TPB-0507-08 5 +0.020/+0.068 7 8 TPB-2023-20 20 +0.040/+0.124 23 20
TPB-0507-10 5 +0.020/+0.068 7 10 TPB-2023-23 20 +0.040/+0.124 23 23
TPB-0608-04 6 +0.020/+0.068 8 4 TPB-2023-25 20 +0.040/+0.124 23 25
TPB-0608-05 6 +0.020/+0.068 8 5 TPB-2023-30 20 +0.040/+0.124 23 30
TPB-0608-06 6 +0.020/+0.068 8 6 TPB-2025-15 20 +0.040/+0.124 25 15
TPB-0608-08 6 +0.020/+0.068 8 8 TPB-2225-15 22 +0.040/+0.124 25 15
TPB-0608-10 6 +0.020/+0.068 8 10 TPB-2225-20 22 +0.040/+0.124 25 20
TPB-0608-11 6 +0.020/+0.068 8 11 TPB-2225-25 22 +0.040/+0.124 25 25
TPB-0810-05 8 +0.025/+0.083 10 5 TPB-2225-30 22 +0.040/+0.124 25 30
TPB-0810-06 8 +0.025/+0.083 10 6 TPB-2528-10 25 +0.040/+0.124 28 10
TPB-0810-08 8 +0.025/+0.083 10 8 TPB-2528-12 25 +0.040/+0.124 28 12
TPB-0810-10 8 +0.025/+0.083 10 10 TPB-2528-15 25 +0.040/+0.124 28 15
TPB-0810-11 8 +0.025/+0.083 10 11 TPB-2528-20 25 +0.040/+0.124 28 20
TPB-0810-12 8 +0.025/+0.083 10 12 TPB-2528-25 25 +0.040/+0.124 28 25
TPB-0810-15 8 +0.025/+0.083 10 15 TPB-2528-30 25 +0.040/+0.124 28 30
TPB-0811-10 8 +0.025/+0.083 11 10 TPB-2529-25 25 +0.040/+0.124 29 25
TPB-0812-10 8 +0.025/+0.083 12 10 TPB-2530-25 25 +0.020/+0.104 30 25
TPB-0911-06 9 +0.025/+0.083 11 6 TPB-2832-20 28 +0.040/+0.124 32 20
TPB-1012-04 10 +0.025/+0.083 12 4 TPB-2832-25 28 +0.040/+0.124 32 25
TPB-1012-05 10 +0.025/+0.083 12 5 TPB-2832-30 28 +0.040/+0.124 32 30
TPB-1012-06 10 +0.025/+0.083 12 6 TPB-3034-20 30 +0.040/+0.124 34 20
TPB-1012-08 10 +0.025/+0.083 12 8 TPB-3034-25 30 +0.040/+0.124 34 25
TPB-1012-10 10 +0.025/+0.083 12 10 TPB-3034-30 30 +0.040/+0.124 34 30
TPB-1012-12 10 +0.025/+0.083 12 12 TPB-3034-40 30 +0.040/+0.124 34 40
TPB-1012-15 10 +0.025/+0.083 12 15 TPB-3236-20 32 +0.050/+0.150 36 20
TPB-1014-10 10 +0.025/+0.083 14 10 TPB-3236-23 32 +0.050/+0.150 36 23
TPB-1014-16 10 +0.025/+0.083 14 16 TPB-3236-25 32 +0.050/+0.150 36 25
TPB-1012-18 10 +0.025/+0.083 12 18 TPB-3236-30 32 +0.050/+0.150 36 30
TPB-1012-20 10 +0.025/+0.083 12 20 TPB-3236-40 32 +0.050/+0.150 36 40
TPB-1214-06 12 +0.032/+0.102 14 6 TPB-3539-15 35 +0.050/+0.150 39 15
TPB-1214-08 12 +0.032/+0.102 14 8 TPB-3539-20 35 +0.050/+0.150 39 20
TPB-1214-10 12 +0.032/+0.102 14 10 TPB-3539-25 35 +0.050/+0.150 39 25
TPB-1214-12 12 +0.032/+0.102 14 12 TPB-3539-30 35 +0.050/+0.150 39 30
TPB-1214-15 12 +0.032/+0.102 14 15 TPB-3539-40 35 +0.050/+0.150 39 40
TPB-1214-20 12 +0.032/+0.102 14 20 TPB-3539-50 35 +0.050/+0.150 39 50
TPB-1214-25 12 +0.032/+0.102 14 25 TPB-4044-20 40 +0.050/+0.150 44 20
TPB-1214-30 12 +0.032/+0.102 14 30 TPB-4044-30 40 +0.050/+0.150 44 30
TPB-1215-20 12 +0.032/+0.102 15 20 TPB-4044-40 40 +0.050/+0.150 44 40
TPB-1216-12 12 +0.032/+0.102 16 12 TPB-4044-50 40 +0.050/+0.150 44 50
TPB-1315-07 13 +0.032/+0.102 15 7 TPB-4550-30 45 +0.050/+0.150 50 30
TPB-1315-10 13 +0.032/+0.102 15 10 TPB-4550-40 45 +0.050/+0.150 50 40
TPB-1416-08 14 +0.032/+0.102 16 8 TPB-4550-50 45 +0.050/+0.150 50 50
TPB-1416-10 14 +0.032/+0.102 16 10 TPB-5055-10 50 +0.050/+0.150 55 10
TPB-1416-12 14 +0.032/+0.102 16 12 TPB-5055-20 50 +0.050/+0.150 55 20
TPB-1416-15 14 +0.032/+0.102 16 15 TPB-5055-30 50 +0.050/+0.150 55 30
TPB-1416-20 14 +0.032/+0.102 16 20 TPB-5055-40 50 +0.050/+0.150 55 40
TPB-1416-25 14 +0.032/+0.102 16 25 TPB-5055-50 50 +0.050/+0.150 55 50
TPB-1517-10 15 +0.032/+0.102 17 10 TPB-5456-30 54 +0.060/+0.180 56 30
TPB-1517-12 15 +0.032/+0.102 17 12 TPB-6065-50 60 +0.060/+0.180 65 50
TPB-1517-15 15 +0.032/+0.102 17 15 TPB-7075-50 70 +0.060/+0.180 75 50
TPB-1517-17 15 +0.032/+0.102 17 17 TPB-8085-40 80 +0.060/+0.180 85 40
TPB-1517-20 15 +0.032/+0.102 17 20 TPB-8590-40 85 +0.072/+0.212 90 40
TPB-1517-25 15 +0.032/+0.102 17 25 TPB-125130-60 125 +0.043/+0.143 130 60
TPB-1618-10 16 +0.032/+0.102 18 10 TPB-150155-60 150 +0.043/+0.143 155 60
